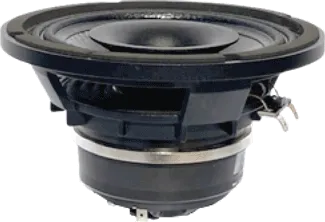

NEW BEYMA PRO6FX240ND COAXIAL SPEAKER INCLUDES A 6.5" CARBON FIBER CONE IN A CAST FRAME WOOFER & A LIGHTWEIGHT NEODYMIUM 1" EXIT HF COMPRESSION DRIVER HANDLES A POWERFUL 200 WATTS AES & 400 WATTS PROGRAM & HAS A FREQUENCY RANGE FROM 100HZ TO 20KHZ COMMON NEODYMIUM MAGNET FOR BOTH THE LOW FREQUENCY & HIGH FREQUENCY REDUCES PHASE PROBLEMS & PROVIDES A SINGLE POINT SOURCE HIGH FREQUENCY DRIVER UTILIZES A NEW PM-4 MATERIAL FOR A SMOOTH SOUND CONEX SPIDER & DEMODULATION RING FOR THE LOW FREQUENCY TO FLATTEN RESPONSE AND LOWER DISTORTION LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 4.18 lbs. EXCELLENT OFF-AXIS RESPONSE OF 70º CONICAL DISPERSION FOR ALL HIGH QUALITY SOUND SINGLE POINT SOURCE APPLICATIONS INCLUDING MOTORCYCLE BAGS, HIGH QUALITY CAR SPEAKER SYSTEMS, MOVIE THEATERS, SMALL PA SYSTEMS, ETC. DESIGNED FOR USE WITH THE FD2CX 2-WAY CROSSOVER NEW BEYMA Pro6FX240Nd COAXIAL SPEAKER HAS PRECISE TIME ALIGNMENT AND IS VERY SMOOTH & DETAILED SOUNDING!
Beyma Pro6FX240Nd
NEW BEYMA PRO6FX240ND
COAXIAL MODEL
PRO6FX240ND
Specifications
Nominal Basket Diameter
6.5" / 165mm
Impedance
8 ohms
Low Frequency AES Power Rating
200 Watts
Low Frequency Program Power 400 Watts High Frequency AES Power Rating 40 Watts High Frequency Program Power 80 Watts Frequency Response
100Hz - 20kHz
High Frequency Sensitivity (1W/1m)
103dB
Low Frequency Sensitivity (1W/1m) 94dB LF Voice Coil Diameter
2" / 50.8mm
HF Voice Coil Diameter 1.75" / 44.4mm Recom. Crossover Frequency 2.5kHz or higher @ 12dB/oct. Voice Coil Length 14 mm Air Gap Height 7 mm X Damage (peak to peak) 26 mm BL Factor 9.1 N/A Mounting Information
Overall Diameter 6.9" / 174mm Bolt Circle Diameter 6.2" / 158mm Baffle Cutout Diameter 5.71" / 145.1mm No. Of Mounting Holes 4 Volume Displaced By Driver 0.02 ft3 / .55 Liters Overall Depth 4.0" / 103.1mm Net Weight 4.2 lb. / 1.9 kg. Shipping Weight 4.6 lb. / 2.1 kg. Materials
Low Frequency Woofer
Basket Die-Cast Aluminum Cone Carbon Fiber Surround Two Roll Treated Cloth Voice Coil Aluminum Spider Conex Magnet Neodymium High Frequency Tweeter
