STATION,SDRG,ESD,W/O TIP,FX-971
The New HAKKO FX-971 Soldering Station is the future of soldering, bringing together precision and innovation with the quality, reliability, and power Hakko is known for.
Specifications
| Station | |
| Model Name | FX-971 |
| Part No. | FX971-010 |
| Power Consumption | 100W 120V |
| Temperature Range | 50° - 450°C (120° - 850°F) |
| Temperature Stability | ±5°C (±9°F) |
| Output Voltage | 24V |
| Outer Dimensions | 93(W) x 126(H) x 123(D) mm (3.7 x 5 x 4.8 in.) |
| Weight | 2.6 lb. (1.2 kg.) |
| Country of Origin | MYS |
| Soldering Iron - Handpiece | |
| Model Number | FX-9701 |
| Tip-to-Ground Resistance | < 2 OHMS |
| Tip-to-Ground Potential | < 2mV |
| Length of Cord | 3.9 ft. (1.2 m) |
| Total Length (w/o cord) | 188 mm (7.4 in.) |
| Weight (w/o cord) | 31g (0.067 lb./1.1 oz.) with T39-D24 tip |

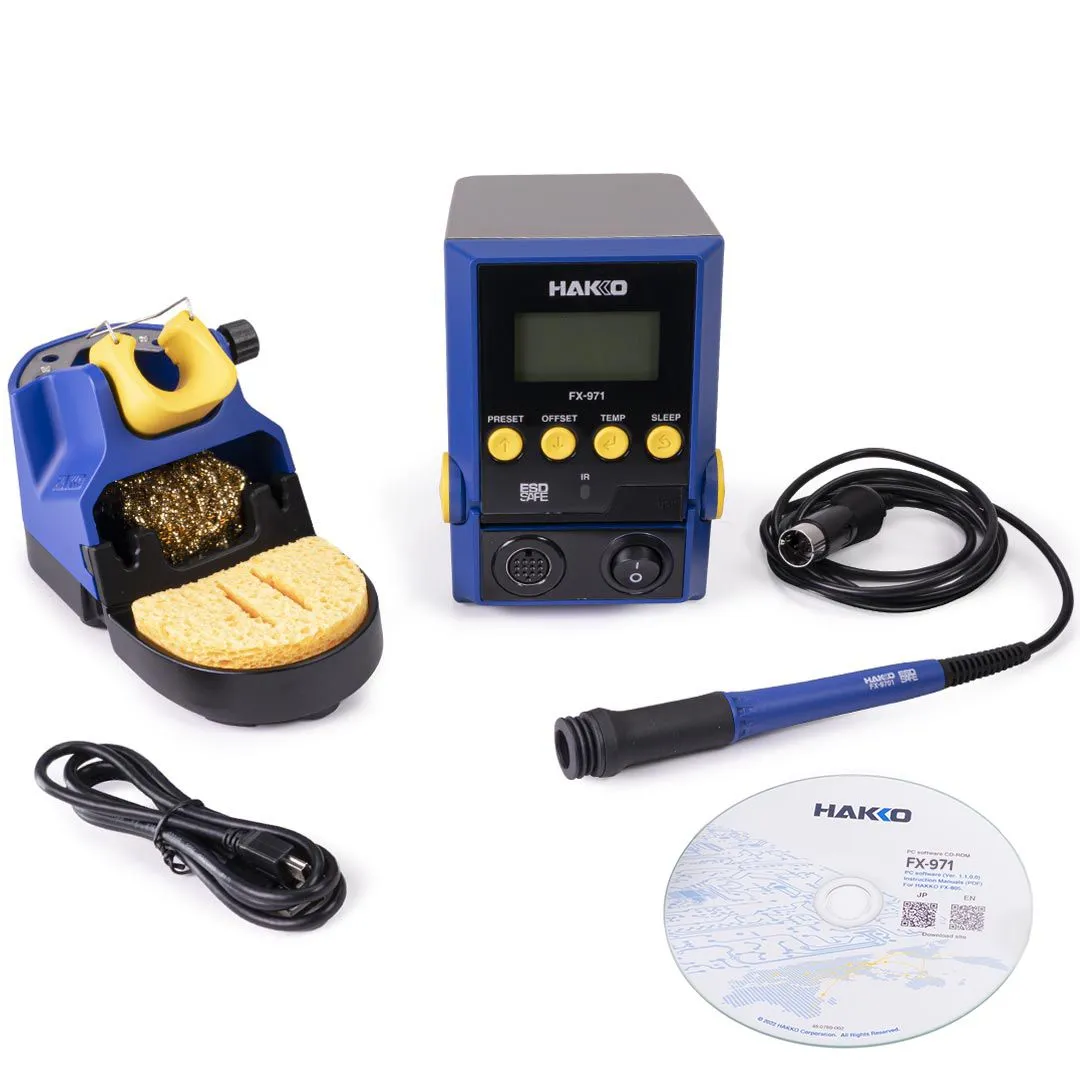

What's in the box?
| Description | Part No. |
| Soldering Station | FX-971 |
| Soldering Iron | |
| Power Cord | |
| Iron Holder | |
| USB Cable | -- |
| Instruction Manual | -- |
| CD-ROM for PC Software | -- |
Note: Tips are not included.
