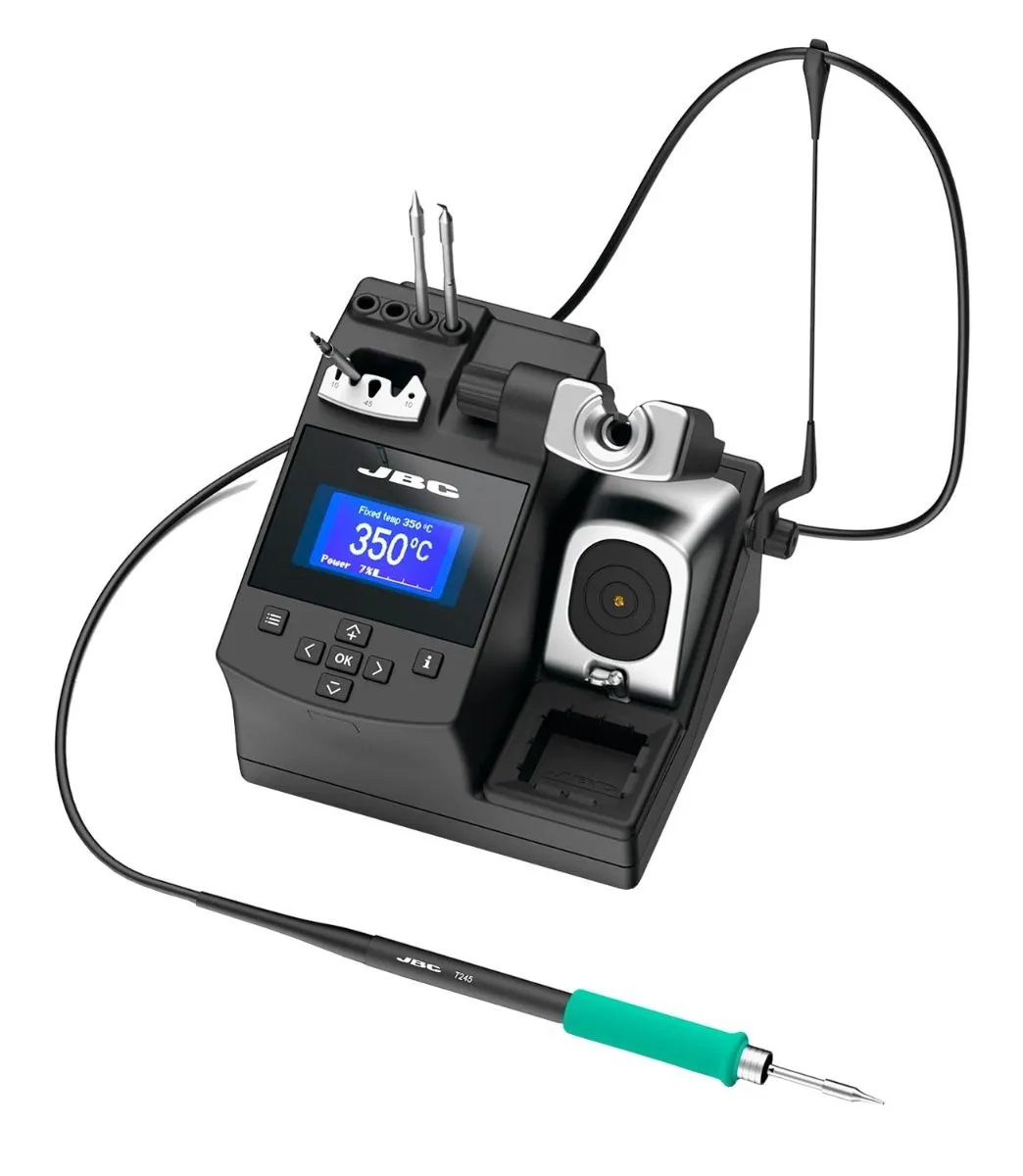

Designed to work general electronics application. Ideal for soldering SMD and THT components. It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint.
- Provides the best soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer.
- Complete Cleaning System with an antisplash membrane to keep the work area clean and integrated wiper to remove excess solder from the tip.
- Cartridge Holder and Exclusive Cartridge Extractor, that facilitates fast and safe cartridge changes.
- Possible connection to the JBC Fume Extractor (connector RJ12).
- Connectivity: data's download, software updates, traceability.
- Includes T245 General Purpose Handle that works with our C245 Cartridge Range.
- Ideal when working on populated PCBs or under a magnifier.
Product Includes
- (1) CD Soldering Station
- (1) T245 General Purpose Handle
Specifications
- Selectable Temperature: 90 to 450°C / 190 to 840°F
- Connectivity USB-B: Software PC / Firmware update
- Equipotential Bonding: Optional connection to EPA
- Connector: RJ12
- Earthing Fuse: F 1.25A
- ESD/EOS / ESD safe: Yes
- Tip to Ground Vol./ Resist.: Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F
Power Supply
- Peak Power: 130 W - 23.5 V
- Operating Temp. Range: 10 to 50°C / 50 to 122°F
Dimensions & Weight
- Compact Stations Weight: 2.74 kg. / 6.04 lb.
- Compact Stations Dimensions: 170 x 176 x 145 mm / 6.69 x 6.93 x 5.71 in
- Package Weight: 3.34 kg. / 7.36 lb.
- Package Dimensions: 234 x 234 x 258 mm / 9.21 x 9.21 x 10.16 in
