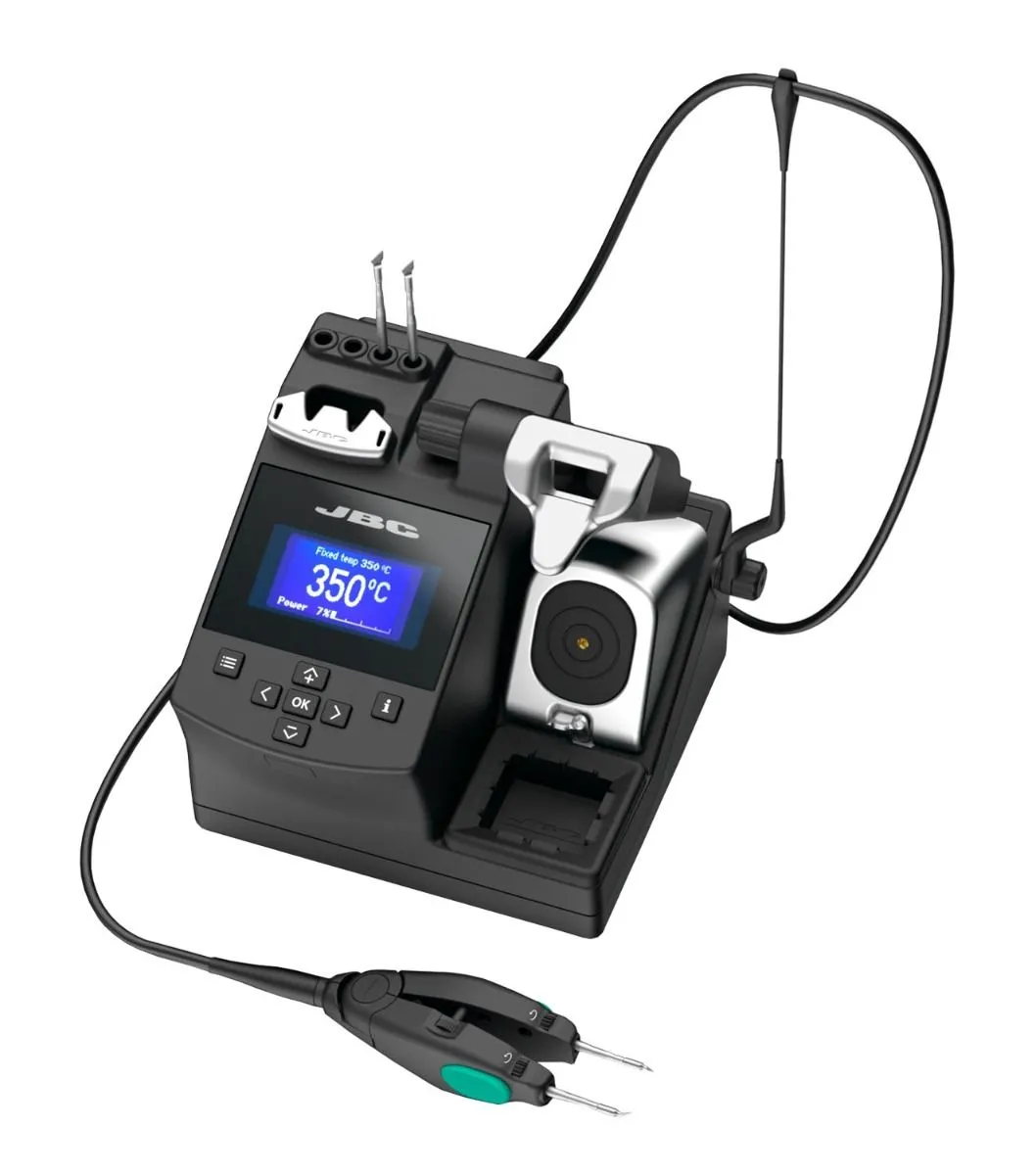

Designed for soldering and reworking SMD components such as chips, small / medium SOP components and dual line components. It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint.
- Provides the best soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer.
- Complete Cleaning System with an antisplash membrane to keep the work area clean and integrated wiper to remove excess solder from the tip.
- Cartridge Holder and JBC Exclusive Cartridge Extractor, that facilitates fast and safe cartridge changes.
- Possible connection to the JBC Fume Extractor (connector RJ12).
- Connectivity: data's download, software updates, traceability.
- Includes AM120 Adjustable Micro Tweezers that works with our C120 Cartridge Range.
- Ideal for soldering and rework of SMD components such as chips, small/medium SOP components and dual line components.
Product Includes
- (1) Control Unit
- (1) AM120 Adjustable Micro Tweezers
Specifications
- Selectable Temperature: 90 to 450°C / 190 to 840°F
- Idle Temp. Stability (still air): ±1.5°C (±3°F) Meets and exceed IPC J-STD-001F
- Temp Accuracy: ±3% ( using reference cartridge)
- Temp Adjustment: ±50°C (±90°F) Through station menu setting
Connectivity
- USB-B: Software PC / Firmware update
- RJ12 Connector: Earthing Fuse
- F 1.25A: ESD/EOS
- ESD-Safe: Tip to ground vol./ resist.
- Meets and Exceed: ANSI/ESD S20.20-2014 IPC J-STD-001F
Power Supply
- Peak Power: 80 W - 23.5 V
- Operating Temp. Range: 10 to 50°C / 50 to 122°F
Weight & Dimensions
- Compact Stations Weight: 2.70 kg. / 5.96 lb.
- Compact Stations Dimensions: 170 x 176 x 145 mm / 6.69 x 6.93 x 5.71 in
- Package Weight: 3.14 kg. / 6.92 lb.
- Package Dimensions: 234 x 234 x 258 mm / 9.21 x 9.21 x 10.16 in
